Lista AG Shop – Drawer cabinet

For filling and loading up the drawers and drawer cabinets, please follow the assembly instructions and the loading rules. Capacity applies with evenly distributed load.

SEL = LISTA quick delivery range. These LISTA products in the colours light blue (.010) and light grey (.020) are available ex-works at short notice.

Technical Data

Description

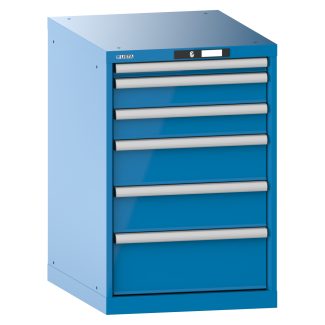

Drawer cabinet

Net weight kg

LISTA units

27 x 36 E

Width mm

564

Depth mm

725

Height mm

850

Clear height mm

750

Number of front heights mm

1 x 50 / 2 x 100 / 2 x 150 / 1 x 200

Drawer safety catch

Standard

Drawer clear dimensions (W x D) mm

450 x 600

Drawers useful width mm

459

Drawers useful depth mm

612

Number of drawers

Drawer load capacity kg

Locking system

KEY Lock

Colour

Light blue RAL 5012

Product specific advantages

Maximum stability
with load capacity of housing up to 4 t and load capacity of drawers 75 or 200 kg

Maximum space utilisation
since drawers can be fully extended and drawer cladding heights are optimised

Outstanding protection
against dirt, liquids and physical loads thanks to closed housing with impact-resistant and abrasion-resistant surface

Outstanding safety features
Safety catch to prevent the drawers from falling out and single-drawer blocking system as an anti-tilt mechanism

Corrosion protection
with electrophoretic dip painting and environmentally-friendly powder coating

Optimum order and organisation
thanks to special LISTA partition material for every purpose and perforated, slotted drawers

Professional labelling
with LISTA Script labelling software and handles which fold upwards for inserting the labels

Extremely quiet
thanks to differential pull-out without a crossbar

Flexible adaptation options
with pre-perforated holes for table tops (punch-outs), castors, drawers, locking systems for easy retrofitting and refitting

Matching accessories for Drawer cabinet

Raised edges on 3 sides

74.026.000

Raised edge 3 sides 27x36E (WxDxH) 564x725x20mm black NCS S 9000-N, including ribbed mat black

137.30 CHF

incl. of VAT

Cover panel

12.593.000

Cover panel 27x36E (WxDxH) 564x725x20mm Multiplex

241.05 CHF

incl. of VAT

Cover panel

17.269.000

Cover panel 27x36E (WxDxH) 564x725x22mm Resin-coated Light grey NCS S 1500-N

243.25 CHF

incl. of VAT

Housing base

74.051.000

Housing base 27x36E (WxDxH) 564x693x50mm Black NCS S 9000-N

108.10 CHF

incl. of VAT

Housing base

74.052.000

Housing base 27x36E (WxDxH) 564x693x100mm Black NCS S 9000-N

114.60 CHF

incl. of VAT

Base cover

74.411.000

Base cover 36E (WxH) 658x100mm on side Black NCS S 9000-N

42.15 CHF

incl. of VAT

Ribbed mat

74.015.000

Ribbed mat 27x36E (WxDxH) 559x720x3mm black

52.95 CHF

incl. of VAT

Protective strip

323.434.000

Protective strip 36E (LxDxH) 720x10x25mm black

60.55 CHF

incl. of VAT

Levelling foot set

69.919.000

Levelling foot set with 4 x levelling feet (45-90mm)

147.00 CHF

incl. of VAT

2-way pallet/forklift truck base

74.410.000

2-way pallet/forklift truck base 27x36E (WxDxH) 564x659x100mm without base cover Black NCS S 9000-N

166.45 CHF

incl. of VAT

Troughs

100.283.000

Partition material Set troughs 27x36E/36x27E (WxD) 612x459mm FH 50mm 12 troughs, 50 dividers

108.10 CHF

incl. of VAT

Plastic boxes

100.290.000

Partition material Set plastic boxes 27x36E/36x27E (WxD) 612x459mm FH 50mm 28 plastic boxes

81.10 CHF

incl. of VAT

Plastic boxes

100.292.000

Partition material Set plastic boxes 27x36E/36x27E (WxD) 612x459mm FH 50mm 18 plastic boxes

64.85 CHF

incl. of VAT

Plastic boxes

100.294.000

Partition material Set plastic boxes 27x36E/36x27E (WxD) 612x459mm FH 100,125mm 18 plastic boxes

129.70 CHF

incl. of VAT

Slotted dividers and metal separators

100.244.000

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 50mm 2 slotted dividers, 10 metal separators

38.40 CHF

incl. of VAT

Slotted dividers and metal separators

100.246.000

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 100,125mm 2 slotted dividers, 10 metal separators

56.20 CHF

incl. of VAT

Slotted dividers and metal separators

100.247.000

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 150mm 2 slotted dividers, 10 metal separators

63.80 CHF

incl. of VAT

Slotted dividers and metal separators

100.271.000

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 100,125mm 1 slotted partition, 2 metal separators

20.55 CHF

incl. of VAT

Slotted dividers and metal separators

100.272.000

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 150mm 1 slotted partition, 2 metal separators

24.30 CHF

incl. of VAT

Slotted dividers and metal separators

100.273.000

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 200mm 1 slotted partition, 2 metal separators

30.80 CHF

incl. of VAT

Slotted dividers and metal separators

100.276.000

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 100,125mm 2 slotted dividers, 3 metal separators

35.15 CHF

incl. of VAT

Slotted dividers and metal separators

100.277.000

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 150mm 2 slotted dividers, 3 metal separators

42.70 CHF

incl. of VAT

Slotted dividers and metal separators

100.278.000

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 200mm 2 slotted dividers, 3 metal separators

49.75 CHF

incl. of VAT

Troughs

100.284.000

Partition material Set troughs 27x36E (WxD) 459x612mm FH 50mm 12 troughs, 30 dividers

91.90 CHF

incl. of VAT

Troughs

100.286.000

Partition material Set troughs 27x36E (WxD) 459x612mm FH 50mm 12 troughs, 30 dividers

88.65 CHF

incl. of VAT

Plastic boxes

100.288.000

Partition material Set plastic boxes 27x36E (WxD) 459x612mm FH 50mm 38 plastic boxes

101.60 CHF

incl. of VAT

Slotted dividers and metal separators

100.234.000

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 50mm 4 slotted dividers, 25 metal separators

71.35 CHF

incl. of VAT

Slotted dividers and metal separators

100.236.000

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 100,125mm 4 slotted dividers, 25 metal separators

107.00 CHF

incl. of VAT

Slotted dividers and metal separators

100.249.000

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 50mm 3 slotted dividers, 8 metal separators

39.45 CHF

incl. of VAT

Slotted dividers and metal separators

100.251.000

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 100,125mm 3 slotted dividers, 8 metal separators

58.35 CHF

incl. of VAT

Slotted dividers and metal separators

100.252.000

Partition material Set slotted partitions and metal dividers 27x36E (WxD) 459x612mm FH 150mm 3 slotted dividers, 8 metal separators

71.35 CHF

incl. of VAT

Non-slip mat

100.396.000

Non-slip mat 27x36E (WxDxH) 450x600x3mm FH 50-300mm anthracite

14.60 CHF

incl. of VAT

Foam insert

80.917.000

Foam insert 27x36E (WxDxH) 600x447x22mm FH 50-300mm black

49.75 CHF

incl. of VAT

Foam underlay

80.906.000

Foam underlay 27x36E (WxDxH) 600x447x3mm FH 50-300mm blau

31.90 CHF

incl. of VAT

Plunge cutter

80.920.000

Plunge cutter 20mm FH 50-300mm

8.65 CHF

incl. of VAT

Plunge cutter

80.921.000

Plunge cutter 50mm FH 50-300mm

15.15 CHF

incl. of VAT

Plunge cutter

80.922.000

Plunge cutter 20x20 U shape

29.75 CHF

incl. of VAT

LISTA Script labels Standard pack

80.325.000

LISTA script labels Standard pack

8.65 CHF

incl. of VAT
